DUCTED AIR COOLER
AIROSTA ECO
Stay cool and comfortable all summer long with AIROSTA ECO, built to last with a durable polypropylene body and offers powerful cooling for warehouses, factories, and more.
AIROSTA ECO
Our AIROSTA ECO is a high-performance ducted air cooler engineered to cool large spaces efficiently. Its durable polypropylene plastic body ensures long-lasting performance and easy maintenance. With powerful cooling capabilities and energy efficiency, the AIROSTA ECO is an excellent choice for various commercial and industrial environments, including warehouses, factories, offices, and restaurants. Its robust construction and user-friendly features make it ideal for maintaining optimal comfort in large areas.
TECHNICAL SPECIFICATION
| Air Volume | Air Discharge | Motor Power | Power Supply | Wind Pressure | Outlet Size | Filter | Pad Surface Area | Noise | Tank Capacity | Water Pump Power | Cooling Effect | Water Inlet | Fan Type | Weight | Dimension (LxWxH) | CELdek Pad | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40000 CMH | Top/Bottom Discharge | 4 kw | 380 v | 250~280 pa | 900x900 mm | NA | 40 sq.ft. | < =82 DB | 180 Ltr | 100 watts | 3 ~ 18°C | Mechanical | Axial | 135 kg | 1420x1420x1320 mm | 100 mm (Flute size 5mm) | Fibre Re-inforced Plastic |

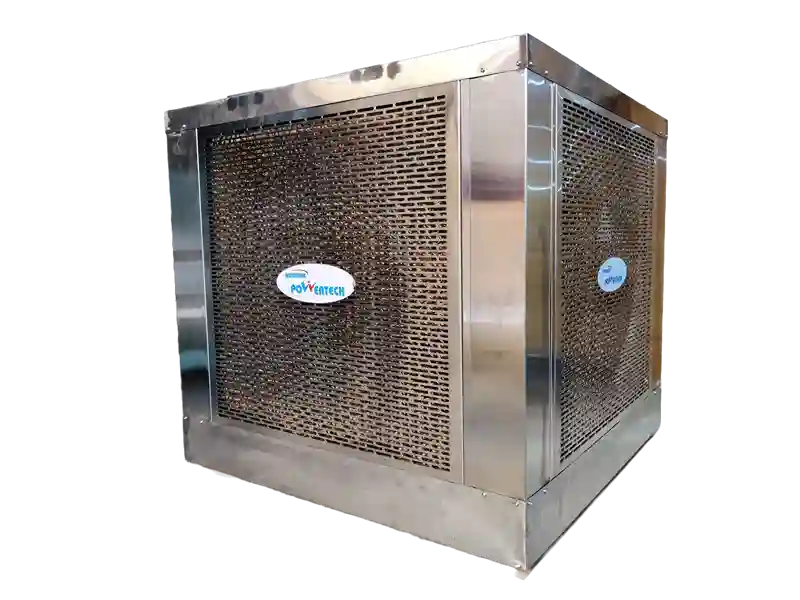

AIROSTA PLUS
Introducing the AIROSTA PLUS, a powerful ducted air cooler specifically designed to keep large spaces comfortably cool. Its sturdy construction combines galvanized iron with high-quality stainless steel (SS 304) for the tank, ensuring durability and easy maintenance. Experience exceptional cooling performance and energy efficiency, making the AIROSTA PLUS an excellent choice for various commercial and industrial applications. With its outstanding capabilities, it is the ideal solution for creating a pleasant environment in large areas.
AIROSTA PLUS
Invest in the AIROSTA PLUS, the ducted air cooler that combines performance with practicality. Its robust construction and stainless steel tank make it a low-maintenance solution for large spaces.
TECHNICAL SPECIFICATION
| Air Volume | Air Discharge | Motor Power | Power Supply | Wind Pressure | Outlet Size | Filter | Pad Surface Area | Noise | Tank Capacity | Water Pump Power | Cooling Effect | Water Inlet | Fan Type | Weight | Dimension (LxWxH) | CELdek Pad | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40000 CMH | Top/Bottom Discharge | 4 kw | 380 v | 250~280 pa | 900x900 mm | NA | 40 sq.ft. | < =82 DB | 180 Ltr | 100 watts | 3 ~ 18°C | Mechanical | Axial | 165 kg | 1215x1215x1210 mm | 100 mm (Flute size 5mm) | Galvanized Iron & SS 304 (Tank) |

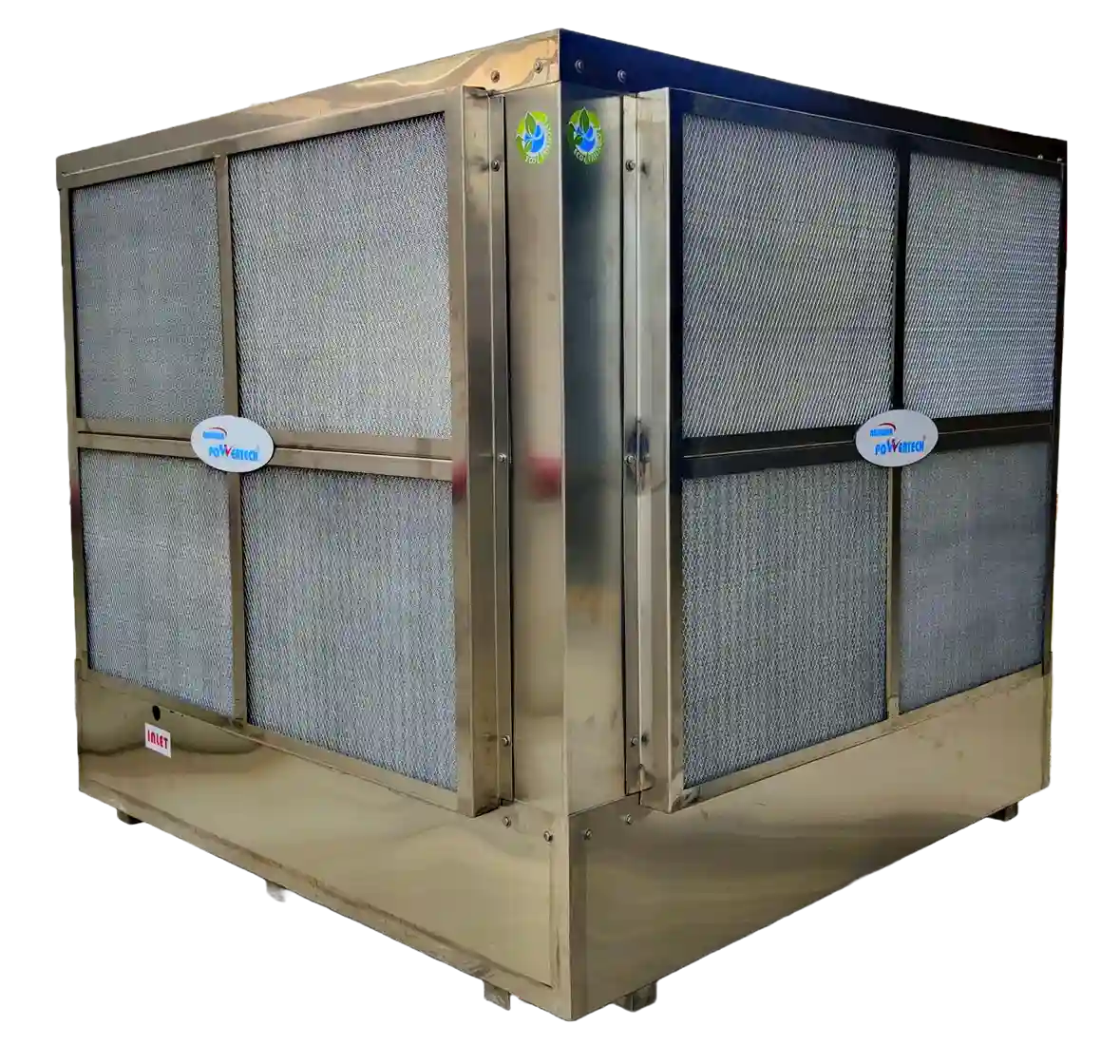

CYCLON
Built to last, the CYCLONE is crafted from durable stainless steel (SS 304) for long-lasting performance and minimal maintenance.
CYCLON
Experience unmatched cooling with the CYCLON, a high-performance ducted air cooler designed to cool large spaces efficiently. Made from durable stainless steel (SS 304), this unit ensures long-lasting performance and easy maintenance. With its powerful cooling capabilities and energy-efficient design, the CYCLON is the ideal solution for various commercial and industrial environments. Choose the CYCLON for an exceptional combination of reliability and efficiency, providing optimal comfort even in the largest areas.
TECHNICAL SPECIFICATION
| Air Volume | Air Discharge | Motor Power | Power Supply | Wind Pressure | Outlet Size | Filter | Pad Surface Area | Noise | Tank Capacity | Water Pump Power | Cooling Effect | Water Inlet | Fan Type | Weight | Dimension (LxWxH) | CELdek Pad | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40000 CMH | Top/Bottom Discharge | 4 kw | 380 v | 250 ~ 280 pa | 900x900 mm | 16 no. | 50 sq.ft. | < =82 DB | 180 Ltr | 100 watts | 3 ~ 20°C | Mechanical | Axial | 175 kg | 1430x1430x1535 mm | 100 mm (Flute size 5mm) | Stainless Steel 304 |
CYCLON PLUS
Introducing the CYCLON PLUS—your ultimate solution for cooling large spaces with unmatched efficiency. Crafted from rugged stainless steel (SS 304), it promises exceptional durability and effortless maintenance. With its powerful cooling capabilities and superior energy efficiency, complemented by a larger tank size, the CYCLON PLUS dominates the commercial and industrial markets. Experience unparalleled comfort and reliability in large industrial areas. Choose the CYCLON PLUS for an unparalleled cooling experience that stands above the rest!
CYCLON PLUS
Transform your cooling experience with CYCLONE PLUS! Enjoy powerful cooling, enhanced energy efficiency, and a larger tank that ensures optimal comfort and productivity.
TECHNICAL SPECIFICATION
| Air Volume | Air Discharge | Motor Power | Power Supply | Wind Pressure | Outlet Size | Filter | Pad Surface Area | Noise | Tank Capacity | Water Pump Power | Cooling Effect | Water Inlet | Fan Type | Weight | Dimension (LxWxH) | CELdek Pad | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40000 CMH | Top/Bottom Discharge | 4 kw | 380 v | 250 ~ 280 pa | 1050x1050 mm | 16 no. | 50 sq.ft. | < =82 DB | 500 Ltr | 70x2 watts | 3 ~ 20°C | Mechanical | Axial | 200 kg | 1640x1640x1530 mm | 200 mm (Flute size 7mm) | Stainless Steel 304 |

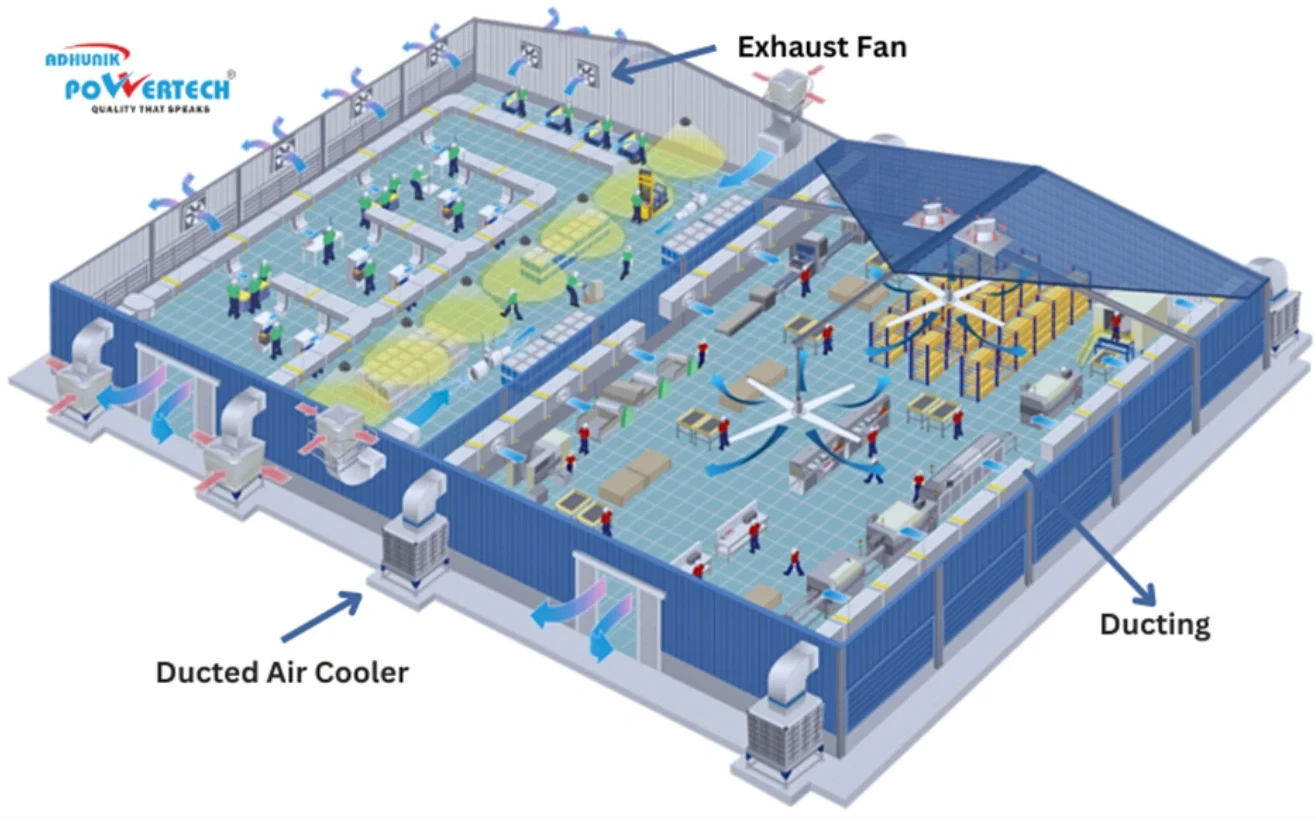

Air Cooling in Industrial Space with Ducted Air Cooler
Outdoor Air Intake: The ducted air cooler draws in warm, dry air from outside the industrial space.
Evaporative Cooling Process: This hot air passes through wetted pads inside the cooler. As the air moves through the pads, water evaporates into the air stream, absorbing heat in the process. This cool, moist air is then distributed throughout the industrial space via ducts.
Temperature Reduction: The cooler lowers the temperature of the air by several degrees Celsius, depending on the outdoor humidity. This cool air helps to improve worker comfort and productivity in hot environments.
FAQs
|
|
