OIL/COOLANT CHILLER

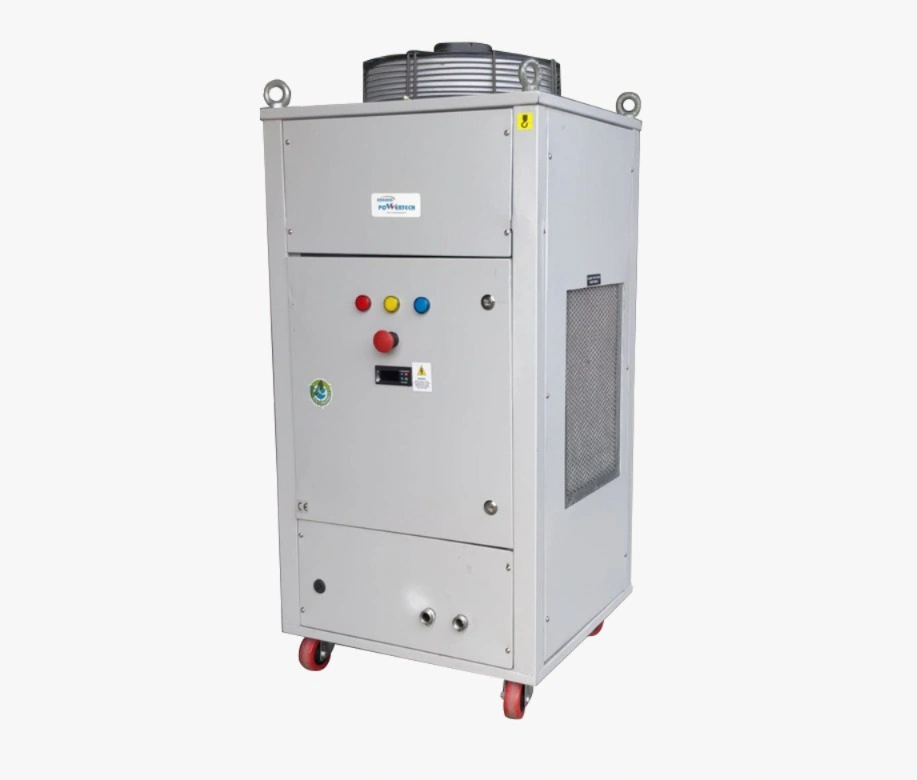

Oil Chiller Unit (1.5 TR.)
Our 1.5 TR Oil/Coolant Chiller is a powerful yet compact cooling solution tailored to meet the demands of various applications. This advanced refrigeration system effectively controls the temperature of your oil and other industrial fluids. With a sophisticated cooling process, our chillers ensure consistent temperature regulation, safeguarding your valuable equipment and maximizing productivity.
Oil Chiller Unit (1.5 TR.)
Our powerful 1.5 TR Oil Chiller protects your equipment and boosts productivity with precise temperature control.
TECHNICAL SPECIFICATION
| Model | Compressor | Condenser | Dimension (mm) (LxWxH) | Evaporator | Expansion Valve | Filter Drier | HP & LP | Refrigerant | Power Supply | Power Consumption (Amp) | Temperature Control | Electric Motor | Hydraulic Gear Pump (LPM) | Operating Temp. Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 Tr. | Reciprocating | Air-cooled (copper tube alu. fins) | 550 X 550 X 1000 | Brazed Plate Heat-exchanger | TE-2 | DML-163 | Manually reset | R-407C | 415V, 50Hz, 3PH | 4.5 Amp. | Subzero 7510t ( -40 to +99 ) | 1 HP,1440 RPM, 50 Hz, TEFC, IE-2 | LPM 28 TO 36 | 10 deg.C to 60 deg.C |

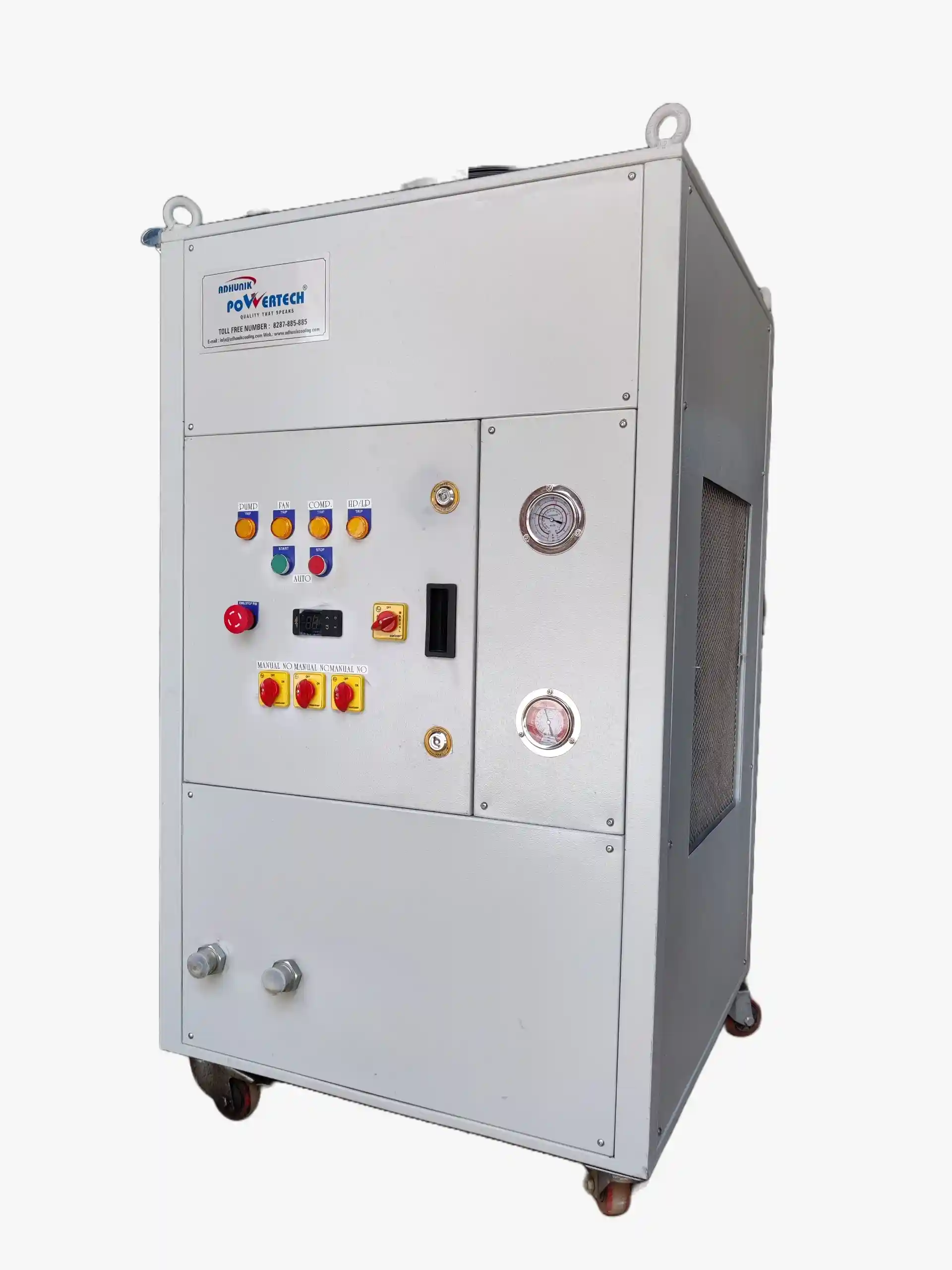

Oil Chiller Unit (3 TR.)
Experience superior cooling performance with our 3 TR Oil Chiller. This factory-tested unit offers exceptional cooling capacity, durable construction, and improved energy efficiency.
Oil Chiller Unit (3 TR.)
Introducing our 3 TR Oil/Coolant Chiller—an efficient cooling solution for industrial applications that ensures precise temperature control for your oil and fluids, optimizing equipment performance and extending lifespan. With exceptional cooling capacity, durable construction, improved energy efficiency, and easy maintenance, this factory-tested system guarantees a seamless installation process. Trust our 3 TR Oil Chiller for reliable cooling and enhanced operational efficiency in your critical processes.
TECHNICAL SPECIFICATION
| Model | Compressor | Condenser | Dimension (mm) (LxWxH) | Evaporator | Expansion Valve | Filter Drier | HP & LP | Refrigerant | Power Supply | Power Consumption (Amp) | Temperature Control | Electric Motor | Hydraulic Gear Pump (LPM) | Operating Temp. Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 Tr. | Copeland Scroll | Air-cooled (copper tube alu. fins) | 50 X 50 X 1 00 7 7 2 | Brazed Plate Heat-exchanger | TGEL-3.5 | DML-163 | Manually reset | R-410A | 415V, 50Hz, 3PH | .5 Amp. 6 | Subzero 7510t (-40 to +99) | 1 HP, 1440 RPM, 50 Hz, TEFC, IE-2 | 28 TO 36 | 10 deg.C to 60 deg.C |

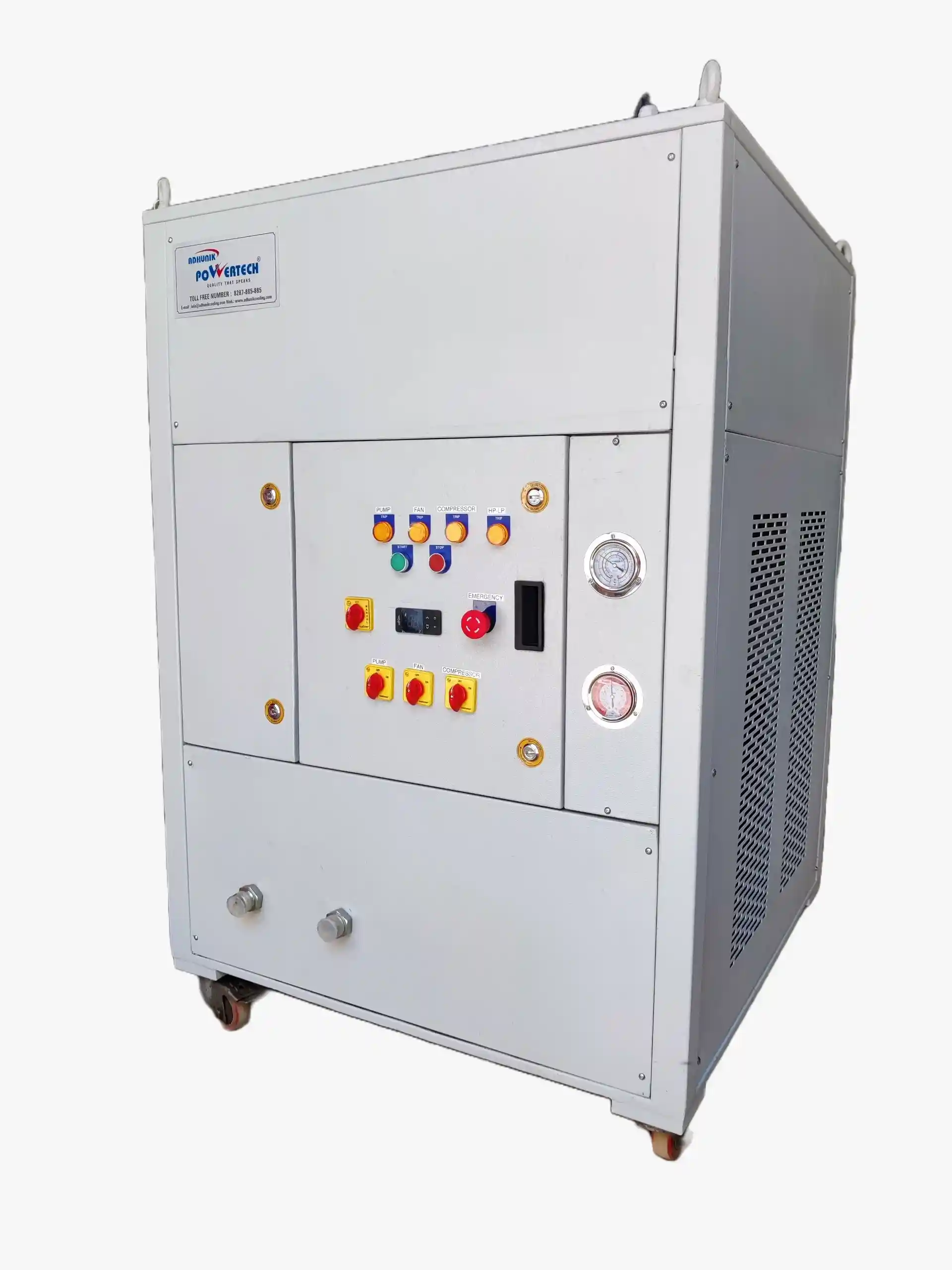

Oil Chiller Unit (5 TR.)
Improve your industrial operations with our 5 TR Oil/Coolant Chiller. This advanced refrigeration system delivers precise temperature control, extending the lifespan and performance of your critical equipment. Designed with durability, energy efficiency, and ease of maintenance in mind, our chiller ensures reliable operation year-round. Featuring microprocessor control and high-efficiency components, our factory-tested chiller guarantees a seamless installation and dependable performance.
Oil Chiller Unit (5 TR.)
Invest in a reliable and efficient cooling solution for your industrial needs. Our 5 TR Oil Chiller delivers precise temperature control, extending the lifespan and performance of your critical equipment.
TECHNICAL SPECIFICATION
| Model | Compressor | Condenser | Dimension (mm) (LxWxH) | Evaporator | Expansion Valve | Filter Drier | HP & LP | Refrigerant | Power Supply | Power Consumption (Amp) | Temperature Control | Electric Motor | Hydraulic Gear Pump (LPM) | Operating Temp. Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 Tr. | Copeland Scroll | Air-cooled (copper tube alu. fins) | 50 X 50 X 1 0 9 9 27 | Brazed Plate Heat-exchanger | TGEL- .5 4 | DML-16 4 | Manually reset | R-410A | 415V, 50Hz, 3PH | 12.6 | Subzero 7510t ( -40 to +99 ) | HP, 1440 RPM, 50 Hz, TEFC, IE-2 2 | TO 40 60 | 10 deg.C to 60 deg.C |
Oil Chiller Unit (8 TR.)
Boost your industrial productivity with our reliable 8 TR Oil Chiller. Designed for heavy-duty applications, it delivers precise temperature control, ensuring optimal equipment performance and a longer service life.
Oil Chiller Unit (8 TR.)
Introducing our powerful 8 TR Oil/Coolant Chiller, specifically designed for heavy industrial applications. This chiller provides excellent temperature control for oil and industrial fluids, enhancing equipment performance and lifespan. With a factory-tested design, it ensures easy installation and reliable cooling for critical processes. Choose Adhunik Powertech for effective industrial cooling solutions tailored to your needs.
TECHNICAL SPECIFICATION
| Model | Compressor | Condenser | Dimension (mm) (LxWxH) | Evaporator | Expansion Valve | Filter Drier | HP & LP | Refrigerant | Power Supply | Power Consumption (Amp) | Temperature Control | Electric Motor | Hydraulic Gear Pump (LPM) | Operating Temp. Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 Tr. | Copeland Scroll | Air-cooled (copper tube alu. fins) | 50 X 50 X 10 10 1460 | Brazed Plate Heat-exchanger | TGEL- .5 8 | DML-16 5S | Manually reset | R-410A | 415V, 50Hz, 3PH | 15.5 | Subzero 7510t (-40 to +99) | HP, 1440 RPM, 50 Hz, TEFC, IE-2 3 | TO 90 110 | 10 deg.C to 60 deg.C |
Product Features
- High Sensible Cooling
- Fully Programmable Micro-Controller
- SS Heat Exchanger
- Alarm For Critical Failure
- Over/Underload Protection
- Heat Exchanger Accumulator
- Compressor with the make of Danfoss, Panasonic, and Tecumseh
- Energy Saving and Aesthetically appealing
FAQs
- Improved Equipment Performance: Maintains optimal operating temperatures, reducing wear and tear.
- Increased Productivity: Ensures consistent performance and prevents downtime.
- Extended Equipment Life: Prevents premature failure due to overheating.
- Enhanced Product Quality: Maintains precise temperature control for consistent results.
- Reduced Energy Consumption: Efficient cooling systems minimize energy usage.
|
|
